HGI  stora flöden

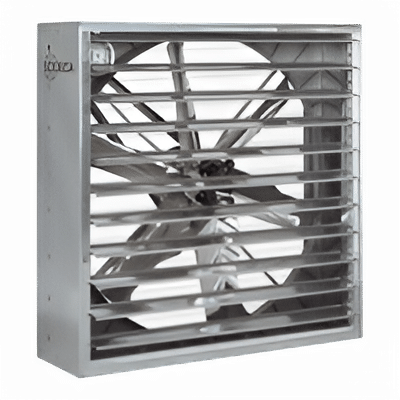

Axialfläkt för stora luftvolumer

Axialfläkt i väggutförande med jalusislutare. För transport av stora volymer luft vid lågt tryck och låg ljudnivå. Används ofta inom lantbruk och odlingsanläggningar.

Fan:

• Sheet steel base plate.

• Galvanised steel structure

• Galvanised sheet steel impeller

• Protection guard to prevent contacts according to standard UNE-EN ISO 12499:2010

• Designed especially for use in farms and hothouses

• Airflow direction from motor to impeller

Motor:

Remdriven motor.

• IE2 efficiency motors for capacities equal to or over 0.75kW and below 7.5kW, except single-phase, 2 speed and 8 pole motors.

• Class F motors, with ball bearings, IP55 protection

• Three-phase 230/400V.-50Hz

• Fan working temperature: -25ºC + 50ºC

Finish:

• Anticorrosive galvanized sheet steel

On request:

• Without shutter and with a protective grille on the impulsion side

• Special windings for different voltages
